ImgArticle numberLed ConsumptionLumenCut OutLight Distribution 2018.264A-ACOT-35 10W 623 lm 100x100mm EPIC-110 ITEM NO. 2018.264A-ACOT-35 Consumption: 10W Current / Voltage: 800mA LED Lumen: 623 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: <19 Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.264A-ACOT-72 25W 2226 lm 100x100mm EPIC-110 ITEM NO. 2018.264A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 2226 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: <19 Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.265A-ACOT-72 25W 2174 lm 100x100mm EPIC-110 ITEM NO. 2018.265A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 2174 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: <19 Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.265A-ACOT-35 10W 603 lm 100x100mm EPIC-110 ITEM NO. 2018.265A-ACOT-35 Consumption: 10W Current / Voltage: 800mA LED Lumen: 603 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.266A-ACOT-72 25W 1182lm 100x100mm EPIC-110 ITEM NO. 2018.266A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 1182lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.187-LEE-15A 13W 1182lm 100mm EPIC-110 ITEM NO. 2018.187-LEE-15A Consumption: 13W Current / Voltage: 350mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.187-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.187-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.187-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.187-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.187-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.187-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.259F-LEE-15A 13W 1182lm 100mm EPIC-110 ITEM NO. 2018.259F-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.259F-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.259F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.259F-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.259F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.259F-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.259F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.191-LEE-15A 13W 1182lm 100mm EPIC-110 ITEM NO. 2018.191-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.191-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.191-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.191-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.191-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.191-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.191-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.260F-LEE-15A 13W 1182lm 100mm EPIC-110 ITEM NO. 2018.260F-LEE-15A Consumption: 13W Current / Voltage: 1182lm LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.260F-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.260F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.260F-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.260F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.260F-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.260F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.192-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.192-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.192-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.192-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.192-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.192-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.261F-LEE-15 17W 2004lm 100mm EPIC-110 ITEM NO. 2018.261F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.261F-LEE-15-DW 16W 34-1507lm 100mm EPIC-110 ITEM NO. 2018.261F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.261F-ACOT-72-WCW 22W 2086-2304lm 100mm EPIC-110 ITEM NO. 2018.261F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.188-LEE-15A 13W 1182lm 100x100mm EPIC-110 ITEM NO. 2018.188-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.188-LEE-15 17W 2004lm 100x100mm EPIC-110 ITEM NO. 2018.188-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.188-LEE-15-DW 16W 34-1507lm 100x100mm EPIC-110 ITEM NO. 2018.188-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue

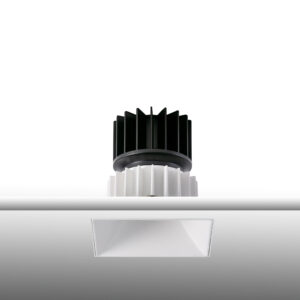

EPIC-110 ITEM NO. 2018.264A-ACOT-35 Consumption: 10W Current / Voltage: 800mA LED Lumen: 623 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: <19 Finishes:

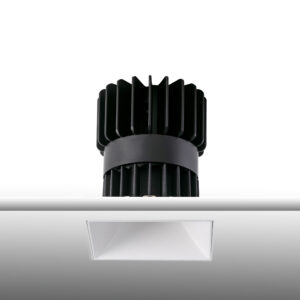

EPIC-110 ITEM NO. 2018.264A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 2226 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: <19 Finishes:

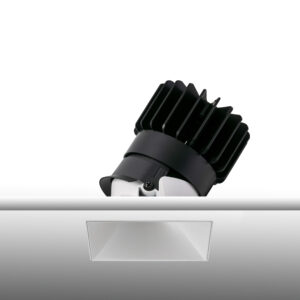

EPIC-110 ITEM NO. 2018.265A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 2174 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: <19 Finishes:

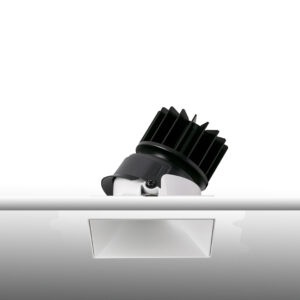

EPIC-110 ITEM NO. 2018.265A-ACOT-35 Consumption: 10W Current / Voltage: 800mA LED Lumen: 603 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:

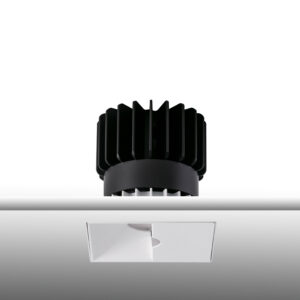

EPIC-110 ITEM NO. 2018.266A-ACOT-72 Consumption: 25W Current / Voltage: 700mA LED Lumen: 1182lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:

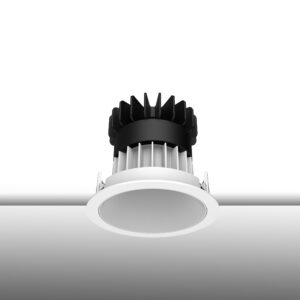

EPIC-110 ITEM NO. 2018.187-LEE-15A Consumption: 13W Current / Voltage: 350mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.187-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.187-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

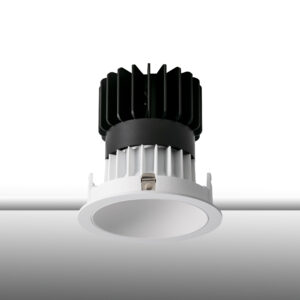

EPIC-110 ITEM NO. 2018.187-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.259F-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:

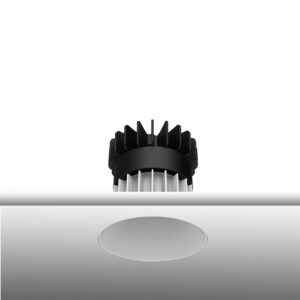

EPIC-110 ITEM NO. 2018.259F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.259F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

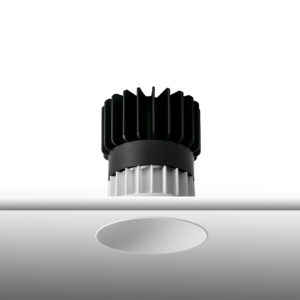

EPIC-110 ITEM NO. 2018.259F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

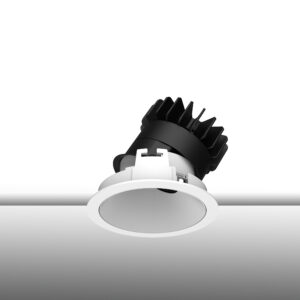

EPIC-110 ITEM NO. 2018.191-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.191-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.191-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

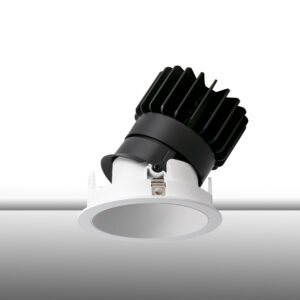

EPIC-110 ITEM NO. 2018.191-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

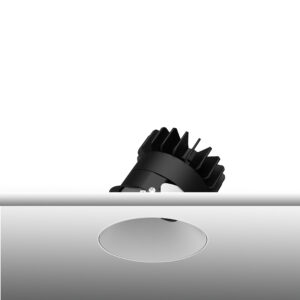

EPIC-110 ITEM NO. 2018.260F-LEE-15A Consumption: 13W Current / Voltage: 1182lm LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.260F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.260F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

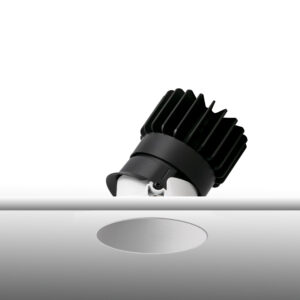

EPIC-110 ITEM NO. 2018.260F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: CCT: 2700-6500K CRI: 90+ UGR: Finishes:

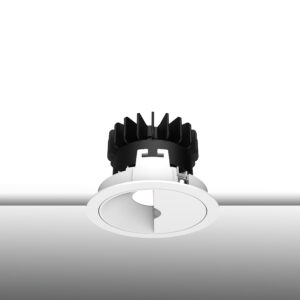

EPIC-110 ITEM NO. 2018.192-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.192-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes:

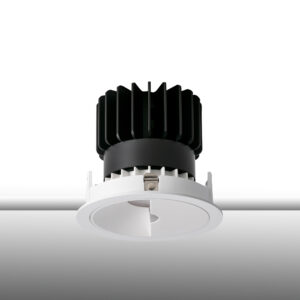

EPIC-110 ITEM NO. 2018.192-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.261F-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:

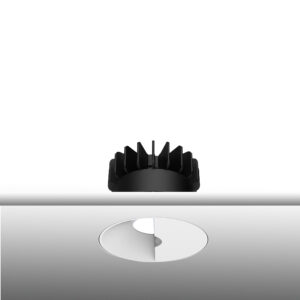

EPIC-110 ITEM NO. 2018.261F-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes:

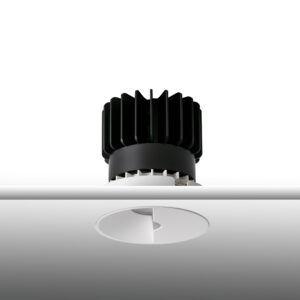

EPIC-110 ITEM NO. 2018.261F-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.188-LEE-15A Consumption: 13W Current / Voltage: 250mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:

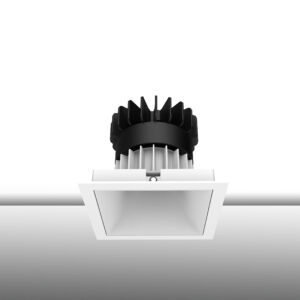

EPIC-110 ITEM NO. 2018.188-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.188-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
