ImgArticle numberLed ConsumptionLumenCut OutLight Distribution 2418.118-LEE-15A 13W 1182 lm 95x95mm BRANKO-110 ITEM NO. 2418.118-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.118-LEE-15 17W 2004 lm 95x95mm BRANKO-110 ITEM NO. 2418.118-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.118-LEE-15-DW 16W 34-1507 lm 95x95mm BRANKO-110 ITEM NO. 2418.118-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.118-ACOT-72 25W 2873 lm 95x95mm BRANKO-110 ITEM NO. 2418.118-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.118-ACOT-72-WCW 22W 2086-2304 lm 95x95mm BRANKO-110 ITEM NO. 2418.118-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.115-LEE-15A 13W 1182 lm 100x100mm BRANKO-110 ITEM NO. 2418.115-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.115-LEE-15 17W 2004 lm 100x100mm BRANKO-110 ITEM NO. 2418.115-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.115-LEE-15-DW 16W 34-1507 lm 100x100mm BRANKO-110 ITEM NO. 2418.115-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.115-ACOT-72 25W 2873 lm 100x100mm BRANKO-110 ITEM NO. 2418.115-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.115-ACOT-72-WCW 22W 2086-2304 lm 100x100mm BRANKO-110 ITEM NO. 2418.115-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.206A-LEE-15A 13W 1182 lm 100x100mm BRANKO-110 ITEM NO. 2418.206A-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.206A-LEE-15 17W 2004 lm 100x100mm BRANKO-110 ITEM NO. 2418.206A-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.206A-LEE-15-DW 16W 34-1507 lm 100x100mm BRANKO-110 ITEM NO. 2418.206A-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.206A-ACOT-72 25W 2873 lm 100x100mm BRANKO-110 ITEM NO. 2418.206A-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.206A-ACOT-72-WCW 22W 2086-2304 lm 100x100mm BRANKO-110 ITEM NO. 2418.206A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.117-LEE-15A 13W 1182 lm 95x95mm BRANKO-110 ITEM NO. 2418.117-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.117-LEE-15 17W 2004 lm 95x95mm BRANKO-110 ITEM NO. 2418.117-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.117-LEE-15-DW 16W 34-1507 lm 95x95mm BRANKO-110 ITEM NO. 2418.117-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.117-ACOT-72 25W 2873 lm 95x95mm BRANKO-110 ITEM NO. 2418.117-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.117-ACOT-72-WCW 22W 2086-2304 lm 95x95mm BRANKO-110 ITEM NO. 2418.117-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.114-LEE-15A 13W 1182 lm 100x100mm BRANKO-110 ITEM NO. 2418.114-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.114-LEE-15 17W 2004 lm 100x100mm BRANKO-110 ITEM NO. 2418.114-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.114-LEE-15-DW 16W 34-1507 lm 100x100mm BRANKO-110 ITEM NO. 2418.114-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.114-ACOT-72 25W 2873 lm 100x100mm BRANKO-110 ITEM NO. 2418.114-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.114-ACOT-72-WCW 22W 2086-2304 lm 100x100mm BRANKO-110 ITEM NO. 2418.114-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.205A-LEE-15A 13W 1182 lm 100x100mm BRANKO-110 ITEM NO. 2418.205A-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.205A-LEE-15 17W 2004 lm 100x100mm BRANKO-110 ITEM NO. 2418.205A-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.205A-LEE-15-DW 16W 34-1507 lm 100x100mm BRANKO-110 ITEM NO. 2418.205A-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.205A-ACOT-72 25W 2873 lm 100x100mm BRANKO-110 ITEM NO. 2418.205A-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2418.205A-ACOT-72-WCW 22W 2086-2304 lm 100x100mm BRANKO-110 ITEM NO. 2418.205A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue
BRANKO-110 ITEM NO. 2418.118-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.118-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.118-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.118-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.118-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.115-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.115-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.115-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.115-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.115-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

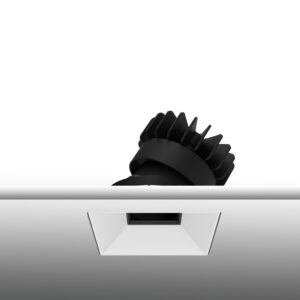

BRANKO-110 ITEM NO. 2418.206A-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.206A-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.206A-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

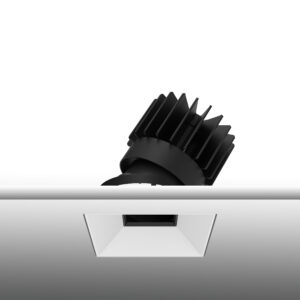

BRANKO-110 ITEM NO. 2418.206A-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.206A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

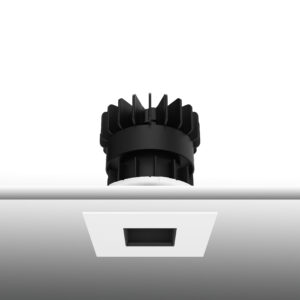

BRANKO-110 ITEM NO. 2418.117-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.117-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.117-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

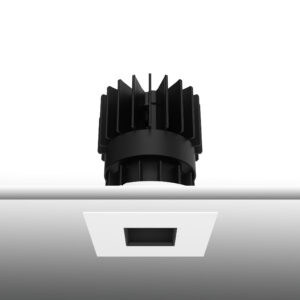

BRANKO-110 ITEM NO. 2418.117-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.117-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

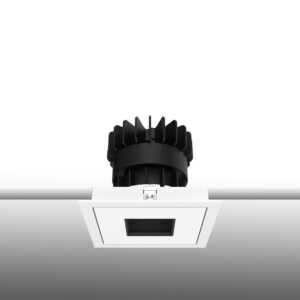

BRANKO-110 ITEM NO. 2418.114-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.114-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.114-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

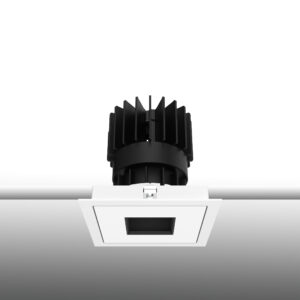

BRANKO-110 ITEM NO. 2418.114-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.114-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:

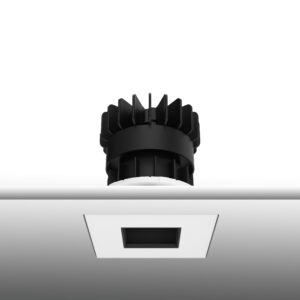

BRANKO-110 ITEM NO. 2418.205A-LEE-15A Consumption: 13W Current / Voltage: 350 mA LED Lumen: 1182 lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.205A-LEE-15 Consumption: 17W Current / Voltage: 500 mA LED Lumen: 2004 lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.205A-LEE-15-DW Consumption: 16W Current / Voltage: 450 mA LED Lumen: 34-1507 lm Beam Angle: 15°/24°/36°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

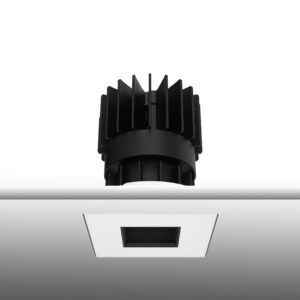

BRANKO-110 ITEM NO. 2418.205A-ACOT-72 Consumption: 25W Current / Voltage: 700 mA LED Lumen: 2873 lm Beam Angle: 30°/40°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
BRANKO-110 ITEM NO. 2418.205A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600 mA LED Lumen: 2086-2304 lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:
