ImgArticle numberLed ConsumptionLumenCut OutLight Distribution 2018.265A-LEE-15A 13W 1182lm 100x100mm EPIC-110 ITEM NO. 2018.265A-LEE-15A Consumption: 13W Current / Voltage: 350mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.265A-LEE-15 17W 2004lm 100x100mm EPIC-110 ITEM NO. 2018.265A-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.265A-LEE-15-DW 16W 34-1507lm 100x100mm EPIC-110 ITEM NO. 2018.265A-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.265A-ACOT-72-WCW 22W 2086-2304lm 100x100mm EPIC-110 ITEM NO. 2018.265A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.196-LEE-15 17W 2004lm 100x100mm EPIC-110 ITEM NO. 2018.196-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.196-LEE-15-DW 16W 34-1507lm 100x100mm EPIC-110 ITEM NO. 2018.196-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.196-ACOT-72-WCW 22W 2086-2304lm 100x100mm EPIC-110 ITEM NO. 2018.196-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.266A-LEE-15 17W 2004lm 100x100mm EPIC-110 ITEM NO. 2018.266A-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.266A-LEE-15-DW 16W 34-1507lm 100x100mm EPIC-110 ITEM NO. 2018.266A-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2018.266A-ACOT-72-WCW 22W 2086-2304lm 100x100mm EPIC-110 ITEM NO. 2018.266A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.106-ACOT-71A 10W 784 lm 80mm EPIC-85 ITEM NO. 2118.106-ACOT-71A Consumption: 10W Current / Voltage: 800 mA LED Lumen: 784 lm Beam Angle: 15° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.106-ACOT-70 12W 1265 lm 80mm EPIC-85 ITEM NO. 2118.106-ACOT-70 Consumption: 12W Current / Voltage: 350ma LED Lumen: 1265 lm Beam Angle: 30°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.107-ACOT-71A 10W 784 lm 80mm EPIC-85 ITEM NO. 2118.107-ACOT-71A Consumption: 10W Current / Voltage: 800mA LED Lumen: 784 lm Beam Angle: 15° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.107-ACOT-70 12W 1124 lm 80mm EPIC-85 ITEM NO. 2118.107-ACOT-70 Consumption: 12W Current / Voltage: 350mA LED Lumen: 1124 lm Beam Angle: 30°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.108-ACOT-70 12W 654 lm 80mm EPIC-85 ITEM NO. 2118.108-ACOT-70 Consumption: 12W Current / Voltage: 350mA LED Lumen: 654 lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF1-WH-RGA0000-WH-LEE15 17Wx1 2004lm 102x102mm ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15 Consumption: 17Wx1 Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF1-WH-RGA0000-WH-LEE15DW 16Wx1 34-1507lm 102x102mm ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15DW Consumption: 16Wx1 Current / Voltage: 500mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL1-WH-GA0000-WH-LEE15 17Wx1 34-1507lm 120x120mm ESB ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15 Consumption: 17Wx1 Current / Voltage: 500mA LED Lumen: 34-1507lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL1-WH-GA0000-WH-LEE15DW 16Wx1 34-1507lm 102x102mm ESB ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15DW Consumption: 16Wx1 Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF2-WH-RGAGA00-WH-LEE15 17W x2 2004lm x2 102x212mm ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15 Consumption: 17W x2 Current / Voltage: 500mA LED Lumen: 2004lm x2 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF2-WH-RGAGA00-WH-LEE15DW 16W x2 34-1507lm x2 102X212mm ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15DW Consumption: 16W x2 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL2-WH-RGAGA00-WH-LEE15 17W x2 2004lm x2 102x232mm ESB ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15 Consumption: 17W x2 Current / Voltage: 500mA LED Lumen: 2004lm x2 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL2-WH-RGAGA00-WH-LEE15DW 16W x2 34-1507lm x2 120x232mm ESB ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15DW Consumption: 16W x2 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF3-WH-RGAGAGA-WH-LEE15 17W x3 2004lm x3 102x323mm ESB ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15 Consumption: 17W x3 Current / Voltage: 500mA LED Lumen: 2004lm x3 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF3-WH-RGAGAGA-WH-LEE15DW 16W x3 34-1507lm x2 102x323mm ESB ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15DW Consumption: 16W x3 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL3-WH-RGAGAGA-WH-LEE15 17W x3 2004lm x3 120x342mm ESB ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15 Consumption: 17W x3 Current / Voltage: 500mA LED Lumen: 2004lm x3 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL3-WH-RGAGAGA-WH-LEE15DW 16W x3 34-1507lm 120x342mm ESB ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15DW Consumption: 16W x3 Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF1-WH-RGA0000-WH-ACOT72 25Wx1 2873lmx1 102x102mm ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-ACOT72 Consumption: 25Wx1 Current / Voltage: 700mA LED Lumen: 2873lmx1 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TL1-WH-RGA0000-WH-ACOT72 25Wx1 2873lmx1 120x120mm ESB ITEM NO. ESB35-TL1-WH-RGA0000-WH-ACOT72 Consumption: 25Wx1 Current / Voltage: 700mA LED Lumen: 2873lmx1 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue ESB35-TF2-WH-RGAGA00-WH-ACOT72 30Wx2 2873lmx2 102x212mm ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-ACOT72 Consumption: 30Wx2 Current / Voltage: 700mA LED Lumen: 2873lmx2 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue
EPIC-110 ITEM NO. 2018.265A-LEE-15A Consumption: 13W Current / Voltage: 350mA LED Lumen: 1182lm Beam Angle: 10° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.265A-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.265A-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.265A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: 30°/40°/50°/60° CCT: 2700-6500K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.196-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.196-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.196-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.266A-LEE-15 Consumption: 17W Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.266A-LEE-15-DW Consumption: 16W Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: Wallwash CCT: 1800-3000K CRI: 90+ UGR: Finishes:
EPIC-110 ITEM NO. 2018.266A-ACOT-72-WCW Consumption: 22W Current / Voltage: 600mA LED Lumen: 2086-2304lm Beam Angle: Wallwash CCT: 2700-6500K CRI: 90+ UGR: Finishes:
EPIC-85 ITEM NO. 2118.106-ACOT-71A Consumption: 10W Current / Voltage: 800 mA LED Lumen: 784 lm Beam Angle: 15° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-85 ITEM NO. 2118.106-ACOT-70 Consumption: 12W Current / Voltage: 350ma LED Lumen: 1265 lm Beam Angle: 30°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-85 ITEM NO. 2118.107-ACOT-71A Consumption: 10W Current / Voltage: 800mA LED Lumen: 784 lm Beam Angle: 15° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-85 ITEM NO. 2118.107-ACOT-70 Consumption: 12W Current / Voltage: 350mA LED Lumen: 1124 lm Beam Angle: 30°/50°/60° CCT: 3000K CRI: 90+ UGR: Finishes:
EPIC-85 ITEM NO. 2118.108-ACOT-70 Consumption: 12W Current / Voltage: 350mA LED Lumen: 654 lm Beam Angle: Wallwash CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15 Consumption: 17Wx1 Current / Voltage: 500mA LED Lumen: 2004lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15DW Consumption: 16Wx1 Current / Voltage: 500mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15 Consumption: 17Wx1 Current / Voltage: 500mA LED Lumen: 34-1507lm Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15DW Consumption: 16Wx1 Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15 Consumption: 17W x2 Current / Voltage: 500mA LED Lumen: 2004lm x2 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15DW Consumption: 16W x2 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15 Consumption: 17W x2 Current / Voltage: 500mA LED Lumen: 2004lm x2 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:

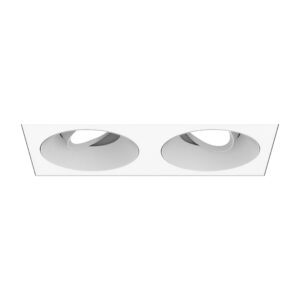

ESB ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15DW Consumption: 16W x2 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15 Consumption: 17W x3 Current / Voltage: 500mA LED Lumen: 2004lm x3 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:

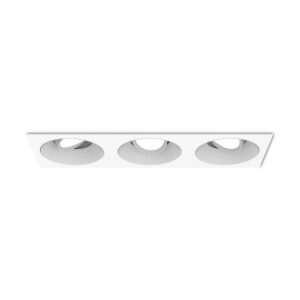

ESB ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15DW Consumption: 16W x3 Current / Voltage: 450mA LED Lumen: 34-1507lm x2 Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

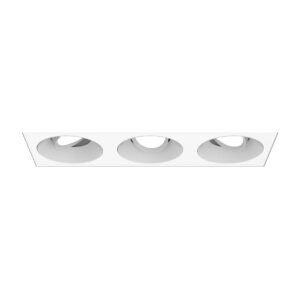

ESB ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15 Consumption: 17W x3 Current / Voltage: 500mA LED Lumen: 2004lm x3 Beam Angle: 20°/30°/45°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
ESB ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15DW Consumption: 16W x3 Current / Voltage: 450mA LED Lumen: 34-1507lm Beam Angle: 20°/25°/40°/50° CCT: 1800-3000K CRI: 90+ UGR: Finishes:

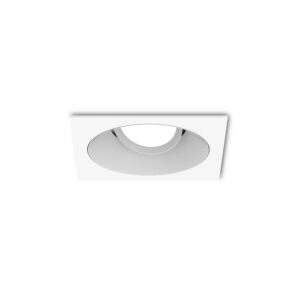

ESB ITEM NO. ESB35-TF1-WH-RGA0000-WH-ACOT72 Consumption: 25Wx1 Current / Voltage: 700mA LED Lumen: 2873lmx1 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes:

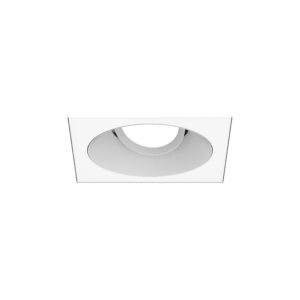

ESB ITEM NO. ESB35-TL1-WH-RGA0000-WH-ACOT72 Consumption: 25Wx1 Current / Voltage: 700mA LED Lumen: 2873lmx1 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes:

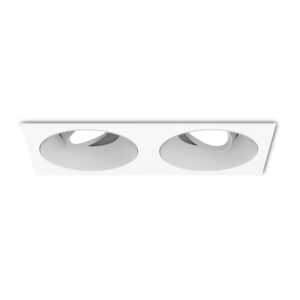

ESB ITEM NO. ESB35-TF2-WH-RGAGA00-WH-ACOT72 Consumption: 30Wx2 Current / Voltage: 700mA LED Lumen: 2873lmx2 Beam Angle: 30°/40°/50°/55° CCT: 3000K CRI: 90+ UGR: Finishes:
