ImgArticle numberLed ConsumptionLumenCut OutLight Distribution 1478.104S 20W MR-11 76mm AMIGO ITEM NO. 1478.104S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.104-ACOT-69-WCW 10W 680-882lm 60x60mm EPIC-65 ITEM NO. 2118.104-ACOT-69-WCW Consumption: 10W Current / Voltage: 250mA LED Lumen: 680-882lm Beam Angle: 20°/40°/55° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 1478.105S 20W MR-11 76X76mm AMIGO ITEM NO. 1478.105S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2118.204A-ACOT-69-WCW 10W 680-882lm 60x60mm EPIC-65 ITEM NO. 2118.204A-ACOT-69-WCW Consumption: 10W Current / Voltage: 250mA LED Lumen: 680-882lm Beam Angle: 20°/40°/55° CCT: 2700-6500K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.510-ACOT-96 7W 656lm 54mm STARLUX-50 ITEM NO. 2218.510-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.511-ACOT-96 7W 656lm 54mm STARLUX-50 ITEM NO. 2218.511-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.240F-ACOT-96 7W 656lm 60mm STARLUX-50 ITEM NO. 2218.240F-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 1378.204S 20W MR-11 70mm AMIGO ITEM NO. 1378.204S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.241F-ACOT-96 7W 656lm 60mm STARLUX-50 ITEM NO. 2218.241F-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.510-ACOT-97 10W 913lm 54mm STARLUX-50 ITEM NO. 2218.510-ACOT-97 Consumption: 10W Current / Voltage: 250mA LED Lumen: 913lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 1378.205S 20W MR-11 70x70mm AMIGO ITEM NO. 1378.205S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.431-1 9W x1 1087lm x1 86x86mm FANTASIA 1/2/3 ITEM NO. 2014.431-1 Consumption: 9W x1 Current / Voltage: 250mA LED Lumen: 1087lm x1 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.431-2 9W x2 1087lm x2 86x175mm FANTASIA 1/2/3 ITEM NO. 2014.431-2 Consumption: 9W x2 Current / Voltage: 250mA LED Lumen: 1087lm x2 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.431-3 9W x3 1087lm x3 86x262mm FANTASIA 1/2/3 ITEM NO. 2014.431-3 Consumption: 9W x3 Current / Voltage: 250mA LED Lumen: 1087lm x3 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.516-1 9W x1 1087lm x1 80x80mm FANTASIA 1/2/3 ITEM NO. 2014.516-1 Consumption: 9W x1 Current / Voltage: 250mA LED Lumen: 1087lm x1 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.516-2 9W x2 1087lm x2 80x175mm FANTASIA 1/2/3 ITEM NO. 2014.516-2 Consumption: 9W x2 Current / Voltage: 250mA LED Lumen: 1087lm x2 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2014.516-3 9W x3 1087lm x3 80x262mm FANTASIA 1/2/3 ITEM NO. 2014.516-3 Consumption: 9W x3 Current / Voltage: 250mA LED Lumen: 1087lm x3 Beam Angle: CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.431-ACOT-36R 14W x1 1193lm x1 86x86mm GAGA 123 ITEM NO. 2114.431-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.431-2-ACOT-36R 14W x2 1193lm x2 86x175mm GAGA 123 ITEM NO. 2114.431-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.431-3-ACOT-36R 14W x3 1193lm x3 86x262mm GAGA 123 ITEM NO. 2114.431-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.432-ACOT-36R 14W x1 1193lm x1 86x86mm GAGA 123 ITEM NO. 2114.432-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.432-2-ACOT-36R 14W x2 1193lm x2 86x175mm GAGA 123 ITEM NO. 2114.432-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.432-3-ACOT-36R 14W x3 1193lm x3 86x262mm GAGA 123 ITEM NO. 2114.432-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.520-ACOT-36R 14W x1 1193lm x1 80x80mm GAGA 123 ITEM NO. 2114.520-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.520-2-ACOT-36R 14W x2 1193 lm x2 80x175mm GAGA 123 ITEM NO. 2114.520-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193 lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.520-3-ACOT-36R 14W x3 1193lm x3 80x262mm GAGA 123 ITEM NO. 2114.520-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.521-ACOT-36R 14W x1 1193lm x1 80x80mm GAGA 123 ITEM NO. 2114.521-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.521-2-ACOT-36R 14W x2 1193lm x2 80x175mm GAGA 123 ITEM NO. 2114.521-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2114.521-3-ACOT-36R 14W x3 1193lm x3 80x262mm GAGA 123 ITEM NO. 2114.521-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue 2218.511-ACOT-97 10W 913lm 54mm STARLUX-50 ITEM NO. 2218.511-ACOT-97 Consumption: 10W Current / Voltage: 250mA LED Lumen: 913lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes: Download Product Picture Dimension Instruction Manual Photometric Data Specification E-catalogue
AMIGO ITEM NO. 1478.104S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes:
EPIC-65 ITEM NO. 2118.104-ACOT-69-WCW Consumption: 10W Current / Voltage: 250mA LED Lumen: 680-882lm Beam Angle: 20°/40°/55° CCT: 2700-6500K CRI: 90+ UGR: Finishes:
AMIGO ITEM NO. 1478.105S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes:
EPIC-65 ITEM NO. 2118.204A-ACOT-69-WCW Consumption: 10W Current / Voltage: 250mA LED Lumen: 680-882lm Beam Angle: 20°/40°/55° CCT: 2700-6500K CRI: 90+ UGR: Finishes:
STARLUX-50 ITEM NO. 2218.510-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
STARLUX-50 ITEM NO. 2218.511-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
STARLUX-50 ITEM NO. 2218.240F-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
AMIGO ITEM NO. 1378.204S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes:
STARLUX-50 ITEM NO. 2218.241F-ACOT-96 Consumption: 7W Current / Voltage: 350mA LED Lumen: 656lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
STARLUX-50 ITEM NO. 2218.510-ACOT-97 Consumption: 10W Current / Voltage: 250mA LED Lumen: 913lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
AMIGO ITEM NO. 1378.205S Consumption: 20W Current / Voltage: 12Vac LED Lumen: MR-11 Beam Angle: CCT: - CRI: - UGR: - Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.431-1 Consumption: 9W x1 Current / Voltage: 250mA LED Lumen: 1087lm x1 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.431-2 Consumption: 9W x2 Current / Voltage: 250mA LED Lumen: 1087lm x2 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.431-3 Consumption: 9W x3 Current / Voltage: 250mA LED Lumen: 1087lm x3 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.516-1 Consumption: 9W x1 Current / Voltage: 250mA LED Lumen: 1087lm x1 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.516-2 Consumption: 9W x2 Current / Voltage: 250mA LED Lumen: 1087lm x2 Beam Angle: 40°/50°/65°/80° CCT: 3000K CRI: 90+ UGR: Finishes:
FANTASIA 1/2/3 ITEM NO. 2014.516-3 Consumption: 9W x3 Current / Voltage: 250mA LED Lumen: 1087lm x3 Beam Angle: CCT: 3000K CRI: 90+ UGR: Finishes:
GAGA 123 ITEM NO. 2114.431-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
GAGA 123 ITEM NO. 2114.431-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
GAGA 123 ITEM NO. 2114.431-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
GAGA 123 ITEM NO. 2114.432-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

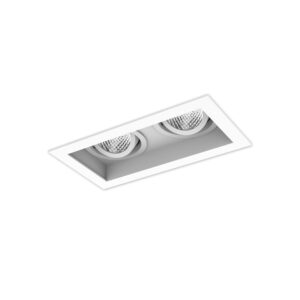

GAGA 123 ITEM NO. 2114.432-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

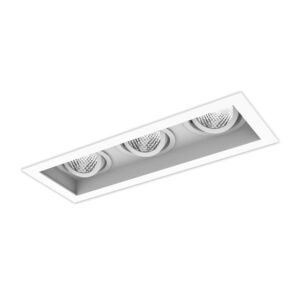

GAGA 123 ITEM NO. 2114.432-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

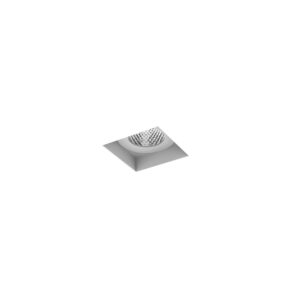

GAGA 123 ITEM NO. 2114.520-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

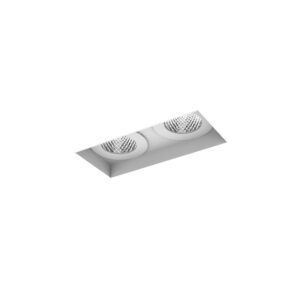

GAGA 123 ITEM NO. 2114.520-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193 lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

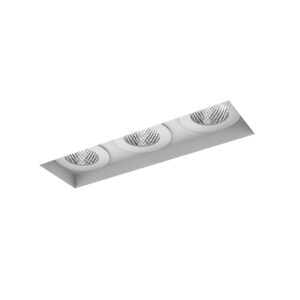

GAGA 123 ITEM NO. 2114.520-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

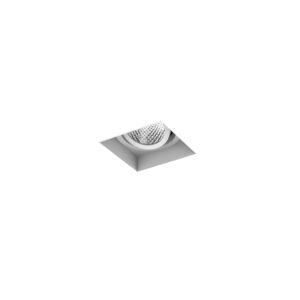

GAGA 123 ITEM NO. 2114.521-ACOT-36R Consumption: 14W x1 Current / Voltage: 350mA LED Lumen: 1193lm x1 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

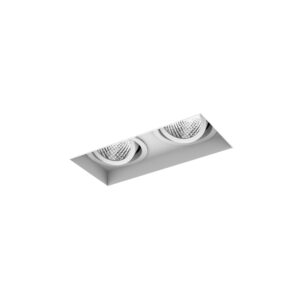

GAGA 123 ITEM NO. 2114.521-2-ACOT-36R Consumption: 14W x2 Current / Voltage: 350mA LED Lumen: 1193lm x2 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
GAGA 123 ITEM NO. 2114.521-3-ACOT-36R Consumption: 14W x3 Current / Voltage: 350mA LED Lumen: 1193lm x3 Beam Angle: 15° /24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:

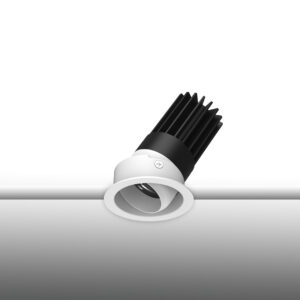

STARLUX-50 ITEM NO. 2218.511-ACOT-97 Consumption: 10W Current / Voltage: 250mA LED Lumen: 913lm Beam Angle: 15°/24°/36°/50° CCT: 3000K CRI: 90+ UGR: Finishes:
